Technology
We are providing a complete remote asset monitoring solution based on M2M and Internet technologies.
see attached article on M2M from www.techonline.com
Our solutions are custom engineered to meet our customers' current and future needs.

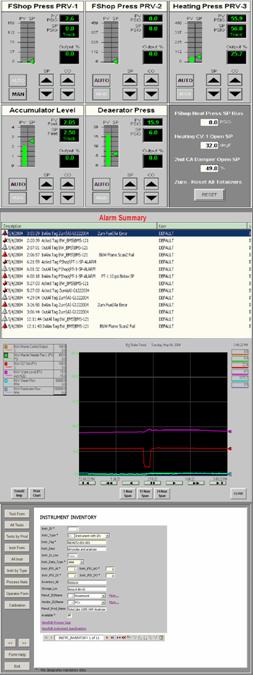

Highly-Distributed SCADA System
The architecture, components and functionality of the system 5 technical solution is that of a Highly-Distributed Supervisory Control and Data Acquisition System (HD-SCADA):
Data Acquisition and Processing:
- poll/time based data acquisition
- exception/event-based data acquisition
- historical data logging (SQL database)
- data transformation services (calculations)
- XML data transfer (to/from ERP systems)
- custom reporting (web-based, e-mail, etc.)
Data Visualization and Alarming:
- web-based graphical user interface
- portable device interface (PDA/3G phone)
- PUSH/RSS alarm messaging to subscriber
- voice alarm messaging to preset phones
- text alarm messaging to phone/pager
Remote Control and Configuration:
- web-based graphical user interface
- remote control from PDA/3G phone
- remote configuration through web-gadgets
- simple configuration thru PDA/3G phone
Unmanned Response:
- “Business Rules” engine and editor
- calculated and indirect SCADA tags

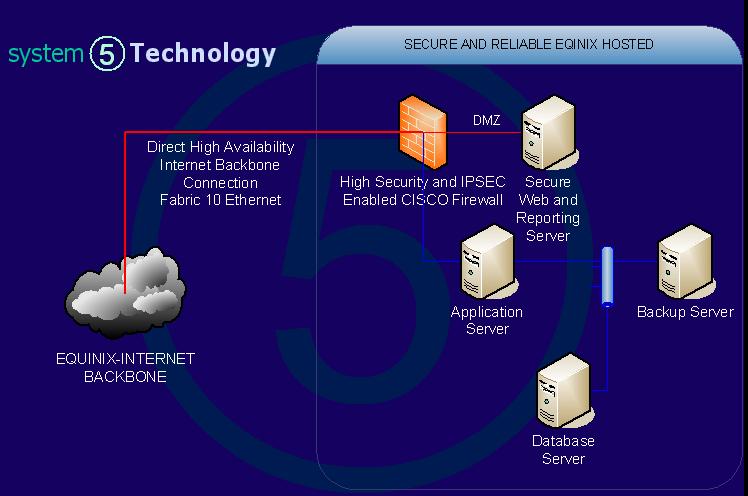

Managed and Hosted Solution
System 5 Data Portal is a fully-managed data service hosted in a controlled and secure environment.
Managed Services Functions:- IT hardware/software installation and maintenance.
- Data (SQL database) regular back-ups.
- Web Site (user interface) management & maintenance.
- Server and Internet connection 24/7/355 up-time monitoring.
Support Services:- Environmental controls (the equipment will be maintained in optimal operating conditions).
- Fire alarm and fire suppression system.
- Uninterruptible power supply (UPS) and backup power generator.
- Fast Internet connection (full T1 – always on);
- Communication backbone redundancy (multiple connections to the Internet – if one fails, the backup takes over).
- Data backup (the SQL databases will be backed-up daily).
- Everyday database and web-pages server maintenance.

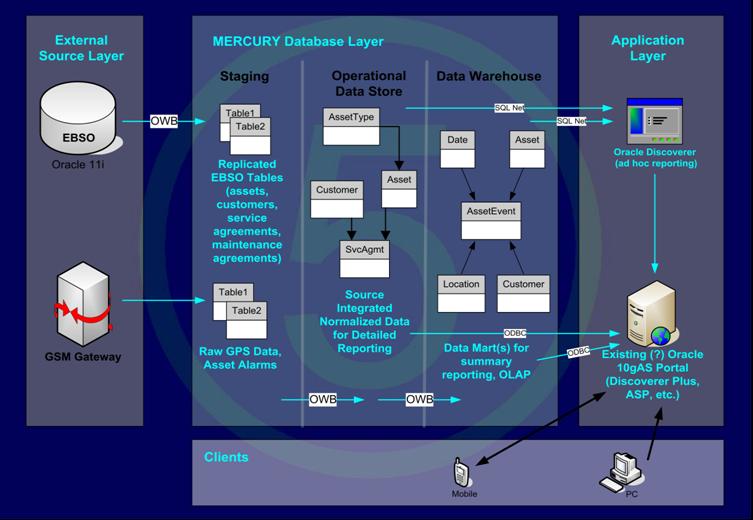

System 5 Data Services
System 5 Data Portal has at it's core a Data Warehouse.
Visualization Services
System 5 Visualization, Reporting and Alarm/Event Anunciation Services make use of the most reliable Web tools:
- Web-Browser based graphical user interface(dynamic/user configurable equipment and data entry/review screens).
- Portable device (PDA, G2/G3 cell phone) graphical user interface (dynamic equipment and data entry/review screens).
- Cell phone / pager text based user interface.
- PUSH/RSS alarm messages to subscribers Internet connected PC (to monitoring station).
- Voice alarm messages to programmed numbers.
- Text alarm messages to cell-phone or pager.
